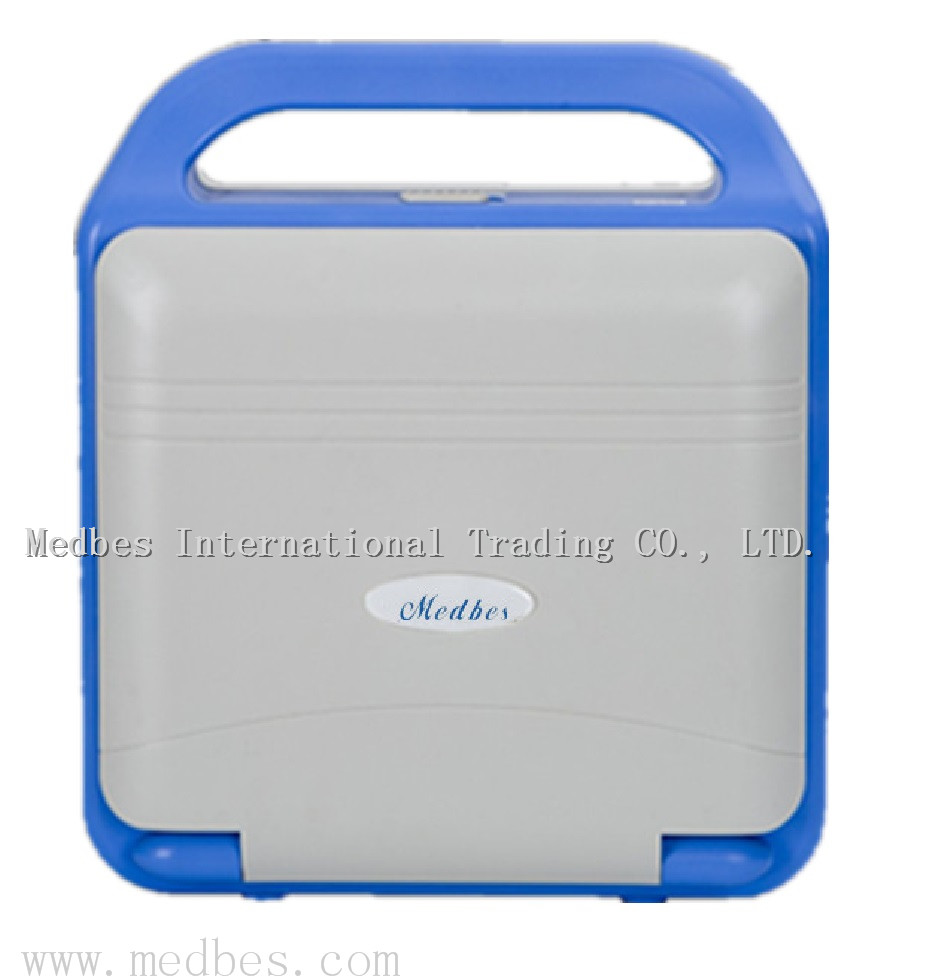

Portable ultrasound scanner (M-B318):

12 inch monitor, high definition image; 2 probe connectors, convenient to transfer the probe; 96 element.

This ultrasound is convex, linear ultrasound scanning diagnostic system with high resolution.
It applies micro-computer control and digital scan converter (DSC), digital beam-forming(DBF),
real time dynamic aperture (RDA),real time dynamic receiving apodization, real time dynamic receiving focusing(DRF),
digital frequency scan (DFS),8 segments digital TGC, frame correlation technologies to endue its image with clarity, stability and high resolution.


Specifications:
Display depth (mm): 240 (max),16 levels adjustable.
Monitor size:12 inch.
Display mode: B,B+B,B+M,M,4B.
Image gray scale:256 level.
Cine loop: 809 frame (Max).
Image storage: 32 frames.
Scan angle: Adjustable.
Scan depth: 40mm-240mm.
Acoustic power: 2 steps.
Dynamic range: 100dB-130dB.
Image flip: Up/down, left/right, black/white.
Focus position: Adjustable.
Focal space: 5 level.
Measurement: Distance, circumference, area, volume, heart rate, GA, FW, EDD.
Notation: Date, time, name. sex, age, doctor, hospital name. Full screen words edit.
Output report: 2 type.
Posture mark: ≥40.
Video output: PAL-D, VGA.
