Product Description

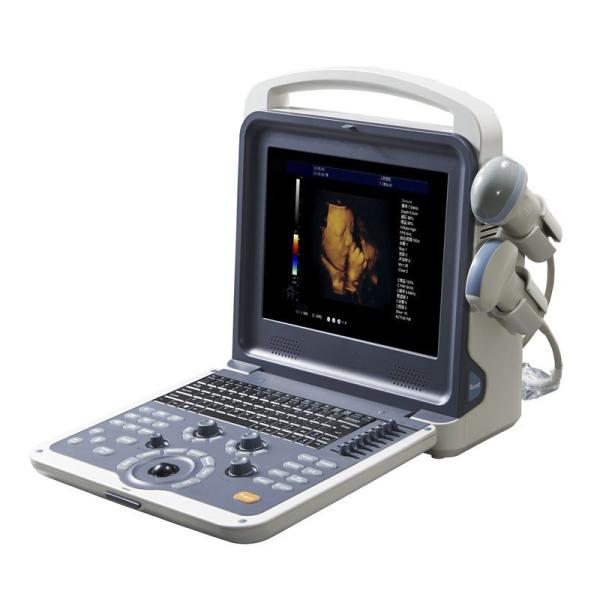

M-K2 is a portable color Doppler ultrasound with stable image
performance and diverse applications.High resolution image
quality,professional measurement software packages: OBSTETRIC,
GYNECOLOGICAL, UROLOGY, SMALL ORGAN which make it applicable to
different body scans and clinic departments, for example emergency,
hospitals, clinics, out calls, etc. With this machine, we are
capable to provide very comprehensive imaging system solutions. The
most important is that this model can be updated to 4D function.
Smart, compact and clamshell design.
12 inch LED monitor
Backlit operation panel, 8TGC
Floating keyboard
Two active probe connectors
Two probe holders
What is the specification of our echo machine?
Transducer Types
Electronic convex probe
Electronic linear probe
Electronic micro convex probe
Electronic transvaginal probe
Electronic phased array probe
4D volume probe
Function
Auto Image Optimization
Tissue Harmonic imaging
iClear (Speckle Noise Reduction)
iBeam (Spatial Compound Image)
iZoom
PIHI (Pulse-Inverse Harmonics Imaging)
SA (Synthetic Aperture Synthesis)
Panoramic Image (Option)
Trapezoid Image (Option)
Continuous Wave Doppler(Option)
Display mode
B, B|B,4B, B|M,M,B|D,PW,B|PW,CW,CF
Triplex mode
4D mode
Zoom
Real time zooming
10 Steps: ×1.0, ×2.0, ×3.0, ×4.0, ×5.0, ×6.0, ×7.0, ×8.0, ×9.0,
×10.0
Selectable zooming position
Focus
Continuous dynamic focus
1~16 selectable transmit focus
Acoustic lens focus
1, 2, 3, 4 focus
Memory
Cine memory
B mode
M mode
SSD (Solid State Disk) 64G
Connectivity
Video out port
DVI out port
VGA out port
2 USB port
DICOM 3.0
Dimension
Gross dimension:510 mm X 500 mm X 330mm
Net dimension:330mm X 150 mm X 380mm
Weight
Gross weight:12 kg
Net weight:7 kg
Power Requirements
Voltage: AC 100V to 240V±10%
Frequency: 50Hz±1Hz
Rated Power: 250VA
Operation Conditions
Ambient temperature: 0℃to +40℃
Relative humidity: 38% to 85%
Atmospheric Pressure: 700hPa to 1060hPa
Standard Accessories
Power Cable
Operation Manual
Fuse
System Recovery USB
Built in Li-ion battery
Optional Accessories
B/W or color Video printer
LaserJet or inkjet printer
Trolley
Aluminum case
Biopsy guide
What is the Imaging Processing of our Ultrasound Scanner?
| B mode | 8 step TGC slide pots
Gain: 0~100%
Depth: 1.6~30cm
Frequency: 5 steps
Dynamic range adjustable: 0~150dB
Edge enhancement:0~7
Persistence:0~7
Chroma:0~6
Grayscale:0~16
Power: 0~100%
Noise reduction: 0-6
iclear: off, 1, 2, 3, 4 |
| M mode | Gain: 0~100%
Sweep speed: 4 steps
Maps: 0~16
Chroma:0~6 |
| C mode | Gain: 0~100%
Pulse wave
Wall filter: 4 steps
Color Maps: 0~7
Package size: 8~15
Color persistence: 0~7
Threshold: 0-3
Base line: 0-6
Line density: Low and high
Spatial filter: 0-3 |
| PW mode | Gain: 0~100%
Frequency: 5 steps
Pseudo color:0~6
PRFd:1.0~6KHz
Basic line: 7 steps
Wall filter: 7 steps
Spectrum mode: Refresh and Synchronize
Sampling volume: 0.5-48mm |
What is the measurement of our Portable Ultrasound Scanner?
| B mode (General) | Distance
Trace Length
Ellipse (area)
Trace(area)
Angle
Volume |
| PW mode | HR (heart rate)
Distance
Velocity
Time |
| Abdomen | Liver
Gallbladder
Pancreas
Spleen |
| Urology | Kidney
Ureter
Bladder
After the urine bladder
Prostate |
| Gynecology | Uterus
Cervix
Ovary
Follicle |
| Early Obstetrics | GS
BPD
CRL
NT |
| Later Obstetrics | BPD
HC
AC
OFD
FL
TAD |
| Small parts | Thyroid
Testes |
| Musculoskeletal | Hip |
| Peripheral vascular | Intima
Artery |
| Cardiology | Distance
Angle
Volume
RVWd
LVDd
RVDd
LVPWd
RVWs
LVDs
RVDs
LVPWs
RV/LV
AO |
