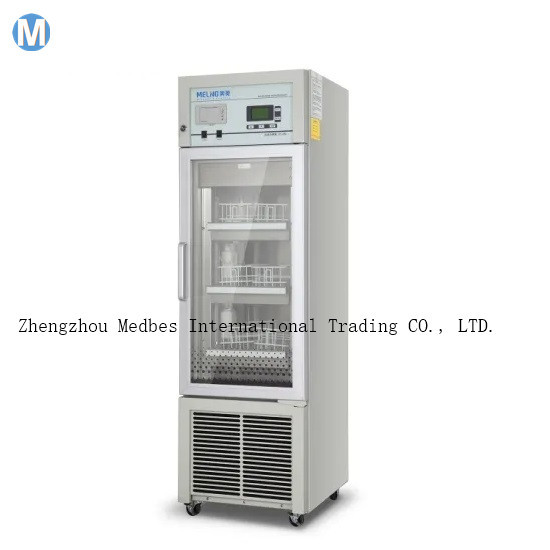

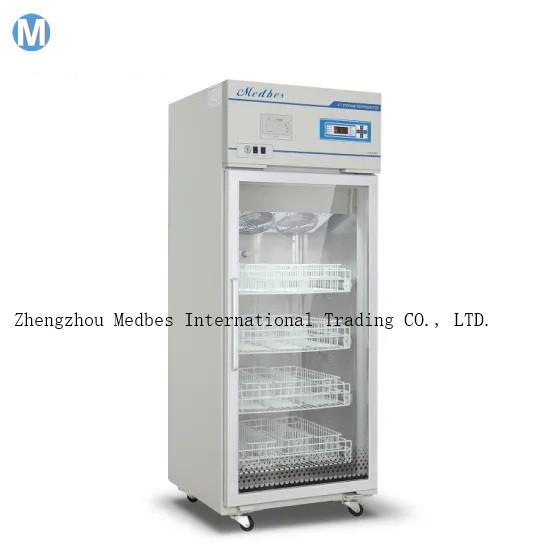

4+/-1c Upright Type Blood Bank Refrigerator
(XC-88L/268L/358L/588L)
Control System:
1.Microprocessor-based temperature controller. Temperature range
4±1°C, with temperature printer standard.
2.Large screen LCD display of temperature, display accuracy of +/-
0.1°C.
3.Automatic temperature control, Defrost automatic
4.Audible and visual alarm: High or low temperature alarm, Door
ajar alarm, system failure alarm, power failure alarm, low battery
alarm.
5.Power supply: 220V /50Hz 1 phase, can be changed as 220V 60HZ or
110V 50/60HZ
Structure Design:
1.Upright type, Exterior made from painted steel plate,Inside is
stainless steel. Four units Caster are mounted under the bottom
2.Three-layer glass door with heater around to prevent ice leak.,
and lockable.
3.Interior fluorescent light
4.Inner is shelves (wire plastics). 3units for XC-88L, 4units for
XC-268L, 5units for XC-358L, 6units for XC-588L, 8units for
XC-950L.
5.Temperature printer is standard , Optional chart recorder, blood
storage basket.
Refrigeration System:
Forced air circulation system
International Famous compressor and Germany EBM fan motors
The high-effective air-cooled condenser and the fin-type evaporator
Refrigerant as R134a, CFC free
Certificate: CE mark, ISO9001, ISO14001,ISO13485
Technical data
| Model | Capacity (L) | External size (D*W*H) | Interior size (D*W*H) | Blood capacity | Weight (KG) |
| XC-88L | 88 | 500*450*1515 | 402*343*663 | 450ml/bag*40-50/bags | 90/100 |
| XC-268L | 268 | 700*628*1662 | 512*518*973 | 450ml/bag*100-140/bags | 160/170 |
| XC-358L | 358 | 700*628*1962 | 512*515*1270 | 450ml/bag*180-220/bags | 200/210 |
| XC-588L | 588 | 800*760*1977 | 550*560*1260 | 450ml/bag*250-300/bags | 230/2 |

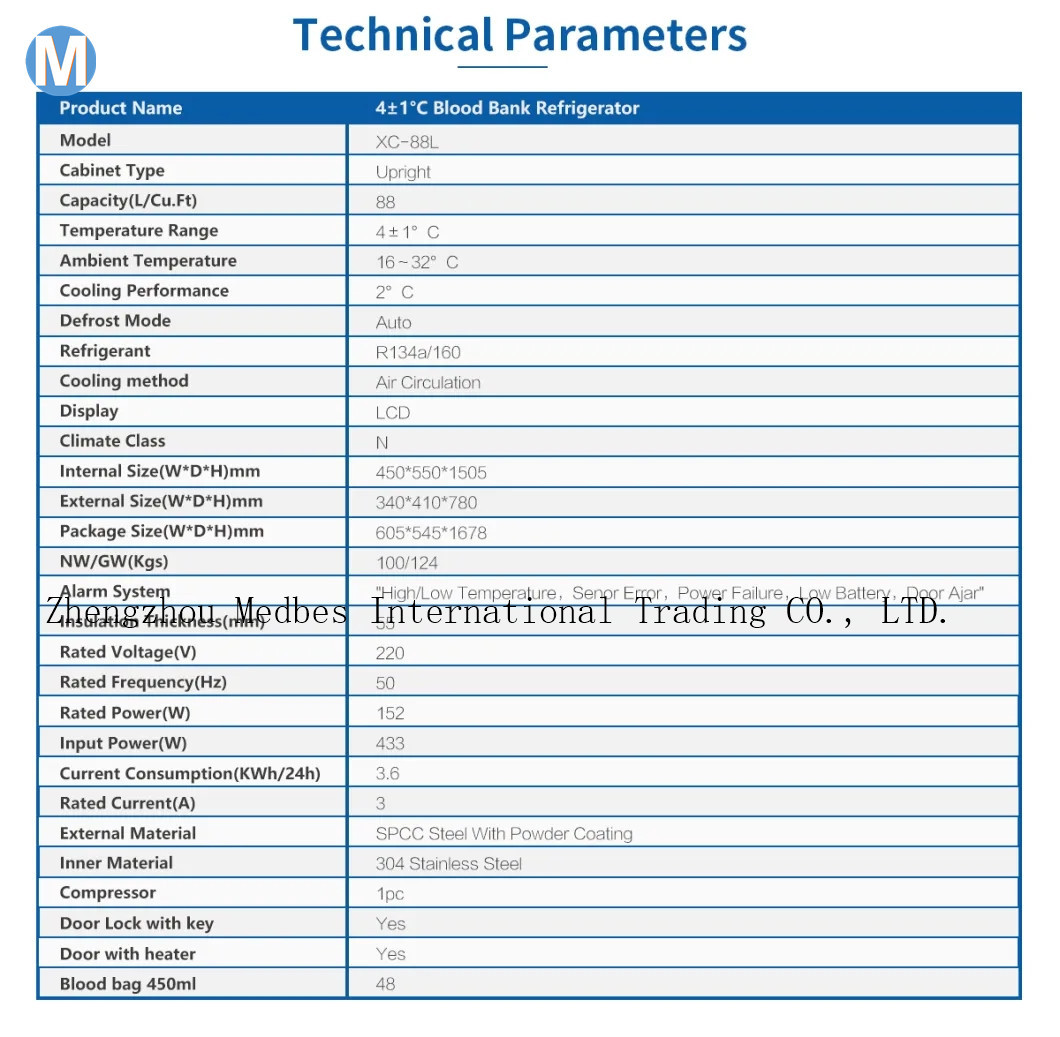

| Product Name | 4+1 ºC Blood Bank Refrigerator |
| Model | XC-88L |
| Capacity Type | Upright |
| Capacity(L) | 88 |
| Temperature Range | 4+16ºC |
| Ambient Temperature | 16-32ºC |
| Cooling Performance | 2ºC |
| Defrost Mode | AUTO |
| Refrigerant | R1314a/160 |
| Cooling method | Air Circulation |
| Display | LCD |
| Climate class | N |
| Internal size (W*D*H)mm | 450*550*1505 |
| External size (W*D*H)mm | 340*410*780 |
| Package size (W*D*H)mm | 605*545*1678 |
| NW/GW(Kgs) | 100/124 |
| Alarm system | High/low temperature, Sensor error, Power failure, Low battery,
Door ajar. |
| Insulation Thickness(mm) | 55 |
| Power supply(V/Hz) | 220/50 |
| Rated power | 152 |
| Input power | 433 |
| Current consumption | 3.6 |
| Rated current | 3 |
| External material | SPCC Steel with Powder Coating |
| Inner material | 304 Stainless steel |
| Compressor | 1pc |
| Door lock with key | Y |
| Door with heater | Y |
| Blood bag 450ml | 48 |
